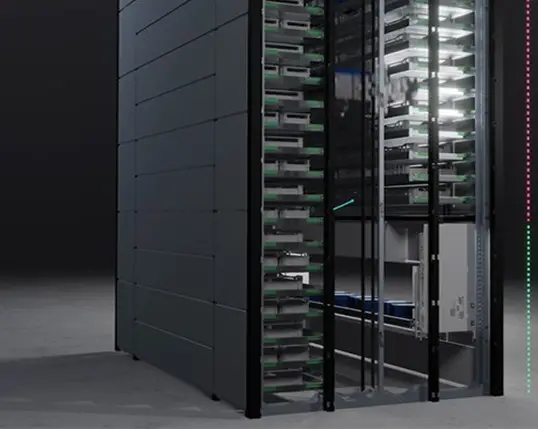

Gonvalift

The new and advanced GonvaLift is faster, quieter and safer for both the people and the stored goods. A push of a button can bring the goods to the user. The new GonvaLift makes order picking safer, more efficient and ergonomic. The modern designs add to its visual appeal.

The benefits of the new GonvaLift include:

• Increase in safety with the locking of the tray in the opening.
• Increase in efficiency due to faster tray changes and higher storage capacity.

The new vertical lift does not need any additional moulding, making the installation process simple. The multiple speed zones in the lift make the tray switches faster and safer. Safety was the top priority while designing the GonvaLift. Internal and external safety lights are set up to stop the movement if any danger is detected.

The high-speed zone, along with our Windows-based WMS, makes the order picking accurate and fast. It can be easily integrated into your existing IT systems. Proactive assistance, detailed documentation, and remote guidance are a few of the support services that our IoT solutions offer.  More security can be set up with password protection.

Key advantages of the GonvaLift:

• Faster and quieter functions.
• Quick installation.
• High efficiency.
• Larger Capacity.
• Modern design.
• Accurate performance.
• Low power consumption.
• Safety light barriers instead of inner doors.
• Multiple speed zones: a slow zone for safety and a fast zone for quick tray switching.
• Dual tray location at the opening.
• Higher security with password protection across levels.
• Remote access and IoT connectivity for proactive support.
• Windows-based WMS that can be easily integrated into your existing IT systems.

Product specifications

Technical data:

• Total height: 2600 - 15000 mm
• Tray width: 4000 mm
• Tray depth: 820 mm
• Tray load capacity: 300 / 500 kg
• Height of stored goods: up to 600 mm
• Storage and retrieval speed: up to 1.4 m/s
• Total load capacity: up to 60 t
• Electricity: 400 VAC, 16 A
• Motor output: 8 kW
