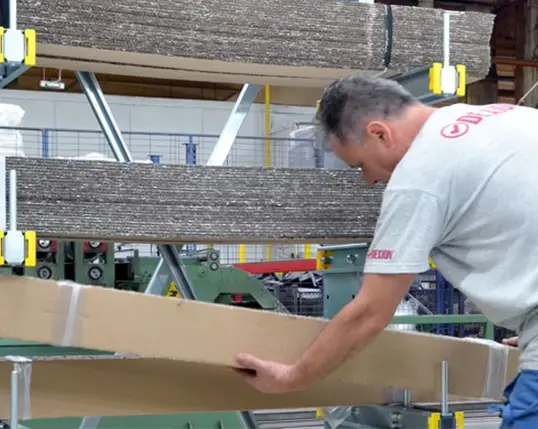

Light Duty Cantilever Racking is ideally suited for storing long and bulky items such as steel bars, pipes, tubes, and timber. The horizontal storage design allows for efficient handling, either manually or using a forklift.
The Light Duty Cantilever is a modular storage system designed for long goods. Its open-front design makes sure clear and easy access for loading and retrieval at every level by making it well-suited to DIY, manufacturing, plumbing, and pipework, and workshop environments.
The Medium Duty Cantilever is designed to sit between our Light and Heavy Duty ranges by providing a versatile solution for storing long and large goods such as pipes, beams, and furniture components. Designed for medium-weight, oversized items, the system supports efficient handling both manually and by forklift.
The system can be expanded over time with additional structural components, which helps to adapt easily to changing storage demands. It is available in both single- and double-sided layouts by offering efficient use of space either as a free-standing unit or installed directly against a wall. The Cantilever solution meets recognised European design standards, including FEM 10.2.09 and EN 1993-1-1:2006 for structural integrity and safe performance.
Accommodates products of any length
Ideal for indoor storage installations
Multiple arm length options available
Arm spacing easily adjustable
Modular design with expandable sections
Load capacities are calculated in accordance with FEM 10.2.09 standards.
System Height: 2000mm and 2500mm
Arm Lengths: 300mm/400mm/500mm/600mm
Maximum load (per arm): 163kg-400kg (depends on layout)
Maximum load (per column): 1300kg-4500kg (depends on layout)
Upright offset: 1000mm/1250mm/1500mm/1750mm/2000mm
Standard finish: galvanized
Handled by: Manual
System Height: 2000mm,2500mm,3000mm,3500mm,4000mm
Arm Lengths: 400mm/500mm/600mm/700mm/800mm/1000mm/1200mm
Maximum load (per arm): 60kg- 1195kg (depends on layout)
Maximum load (per column): 720kg- 4780kg (depends on layout)
Upright offset: 500mm/750mm/1000mm/1250mm/1500mm
Standard finish: galvanized
Handled by: Truck or Manual
