Heavy Duty Cantilever

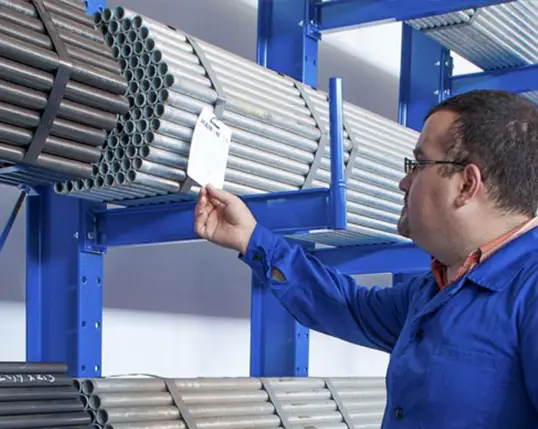

The Heavy Duty Cantilever system is a specialised design developed to safely store large amounts of bulky items such as steel pipes, tubes, and lumber. All items are stored horizontally, making it easy to handle items either personally or by using a forklift truck, depending on the business requirements.

As a flexible modular system, the Heavy Duty Cantilever system is suitable for most types of warehouses. The upper opening design eliminates obstacles in the usage of the forklift, as well as allows for faster and more efficient loading and retrieval of stored goods due to less restriction of access.

As the need for storage increases or changes, it is simple to add additional arms, upright supports, and braces to the Heavy Duty Cantilever System. There are single-sided and double-sided designs available. This makes maximum use of floor space, either by placing the design against a wall or positioning the design as an independent unit with a middle-support column.

The Heavy Duty Cantilever System has been constructed to meet both FEM 10.2.09 and EN 1993-1-1:2006 rules and standards for steel structure construction; therefore, the Heavy Duty Cantilever System is strong, stable, and durable.

Key Features and Benefits:

• Custom-designed configuration tailored to specific user requirements
• Complete structural system including columns, bases, and horizontal arms
• Suitable for secure and efficient storage of long or oversized materials
• Optimises horizontal storage space within the facility
• Adjustable arm lengths and spacing to suit different load profiles
• Can be integrated with a MOVO heavy-duty mobile trolley for added flexibility
• Designed using advanced engineering software and compliant with FEM and EN European standards

Product Specifications

Heights:

Up to 12m (dependent on IPE profile)

Arm length:

Up to 2m as standard (larger lengths available on request)
Columns can be placed up to 2 metres apart as standard (longer distances possible on request)
Colours:

Columns and arms are painted:

Blue RAL 5010 (external paint use for outside applications)
Orange RAL 2001
Grey RAL 7035
(Other colours can be specified)
A hot dip galvanised solution can be provided in corrosive environments
