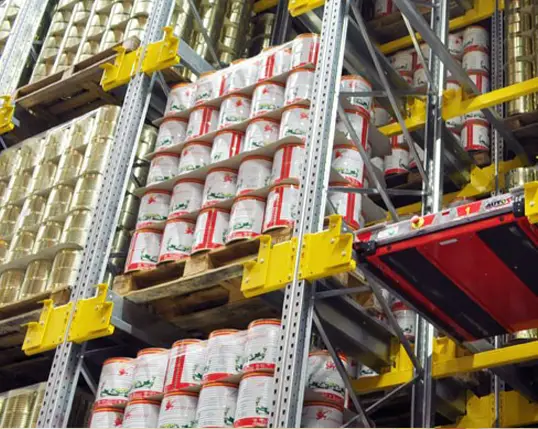

Pallet Shuttle System

The Pallet Shuttle storage and transportation system is an intelligent, semi-automated solution. These are specially designed to improve the use of available storage space by providing a safer, faster and more streamlined method of handling pallets in high-density storage.It operates through deep-channel racking systems, offering a more efficient and streamlined alternative to conventional drive-in and pallet-flow setups used in traditional pallet racking.

The Pallet Shuttle system helps protect personnel and equipment by eliminating the need for forklifts in the aisles, thereby enhancing both productivity and safety while reducing the frequency of pallet inventory movement. The remote-controlled Pallet Shuttle quickly and precisely transfers pallets to the appropriate place and enables the operator to perform a larger number of pallets using less effort and with greater convenience.

The Pallet Shuttle system is versatile and adaptable. It can accommodate both FIFO and LIFO inventory control techniques and is designed for demanding applications such as refrigerated and frozen foods, food/beverages manufacturing, and meat processing facilities. These are environments where time, precision, and dependability play a critical role in daily operations.

Key benefits of implementing the Pallet Shuttle system include:

Cost-effective and time- efficient operation without the need for specialised forklift trucks.

Enhanced Safety - Minimal risks to both equipment and operating personnel.

Fast, efficient and sustainable operation using automated technology for loading, retrieving and handling pallets.

Maximise capacity by enabling more efficient storage (ultra-high density).

Pallet location accuracy for pickup, placement and rearranging.

Designed to operate in a wide variety of temperatures: Standard (0°C to +45°C), Cold (-1°C to -30°C), and a hybrid is available.

Available in various models depending on pallet size and storage requirements.
Engineered in accordance with the European Directive 2006/42/EG, DIN EN 15095 (Safety and Reliability).

Product Specifications

Standard dimensions & ranges:

Shuttle weight: 230kg
Pallet depth: 800mm – 1200mm (depending on model)
Pallet width: 1000mm – 1200mm (depending on model)
Working range: 8 - 10 hours (6 hours in cold stores)
Battery lifetime: 5 years
Charging time 100%: 5 hours
Load capacity boosted up to 2000kg

Loading:

Speed empty: 70 m/min
Speed with load: 35 m/min
Standard load up to: 1500kg

Accessories:

Manual Maintenance Buggy
Liquid-drop Protection
Lithium-Ion Battery (Shuttle) 48V/20Ah
Battery Charging Station
Forklift Lock (yellow)
Magnet Steel Plates
